Fire and Security Drawings

We can produce a variety of Fire and Security Drawings incorporating all disciplines from Initial Designs through to Record Drawings for any project size. Also we can produce colour Fire Zone layouts printed and encapsulated ranging from A4 to A0 in size depending on your specific requirements.

Samples of our work

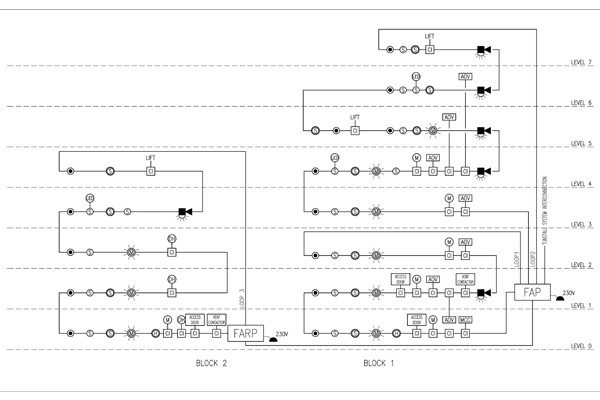

Fire Alarm Schematic
Fire Alarm Schematic

Fire Zone Layout
Fire Zone Layout

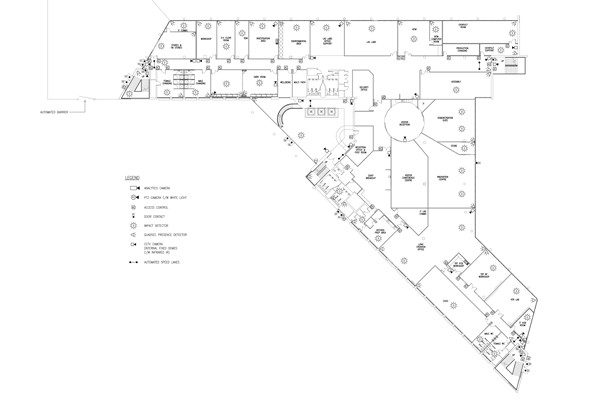

Intruder Access Control
Intruder Access Control

Fire Alarm Layout
Fire Alarm Layout

We offer a highly flexible service whatever your needs, from a simple sketch to a detailed design for new and existing projects. We believe in attention to detail and endeavour to meet all time scales and deadlines requested by our Clients. Please give us a call if you feel we can assist you with your project requirements.
