Co-ordination Drawings – M & E Services

We produce comprehensive Co-ordination Drawings for Mechanical & Electrical Services to assist contractors with their installation. Our Co-ordination Drawings are fully dimensioned and levelled with relevant sections to demonstrate co-ordination. In addition to this we also draw all services and equipment to the exact size with identification notation and an easy to use layering system which allows contractors to isolate their individual service. Our team will also liase closely with the Project Manager, Engineers and Contractors attending meetings, raising technical queries and proposing workable solutions to engineering difficulties.

Samples of our work

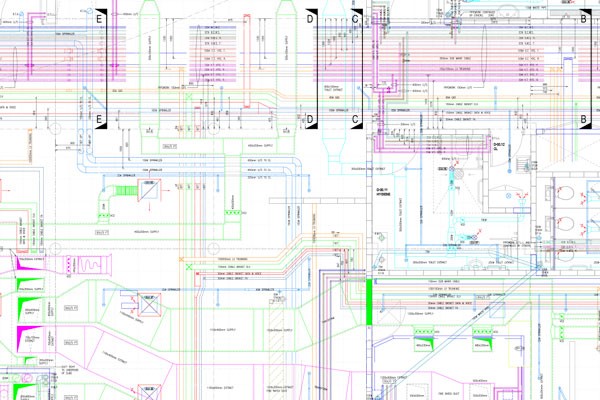

Co-ordinated Plan
Co-ordinated Plan

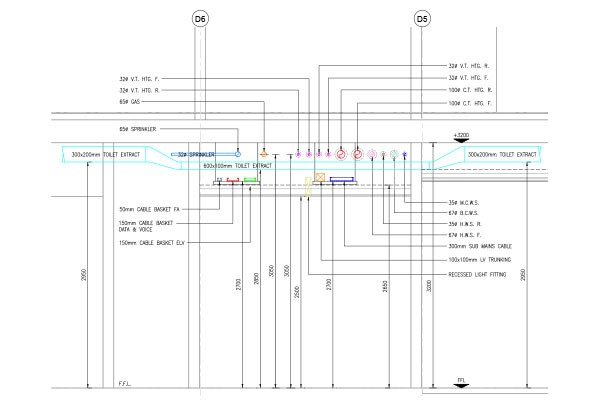

Co-ordinated Sections
Co-ordinated Sections

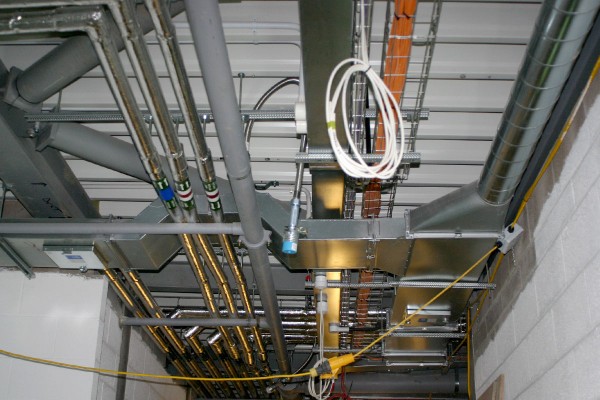

Ceiling Void View
Ceiling Void View

We offer a highly flexible service whatever your needs, from a simple sketch to a detailed design for new and existing projects. We believe in attention to detail and endeavour to meet all time scales and deadlines requested by our Clients. Please give us a call if you feel we can assist you with your project requirements.
